Waterproof IP54 RS485 Full Height Turnstile Gate 40persons/min

Name: Waterproof IP54 RS485 Full Height Turnstile Gate 40personsmin
Brand: Carsafe
Price: 1 USD

Brand Name : Carsafe

Model Number : CA-AT6513

Certification : CE, ISO

Place of Origin : SHENZHEN, CHINA

MOQ : 1 set

Price : negociate

Payment Terms : T/T

Supply Ability : 5000 sets/month

Delivery Time : 7 working days

Packaging Details : Wooden box

Housing : 304 Stainless Steel

Communication : TCP/IP,RS485

Warranty : 1 year

Dimension Of Housing : 290*1500*2360mm

Transit speed : 30-40 persons/min

Working Environment : Indoor Or Outdoor

Contact Now

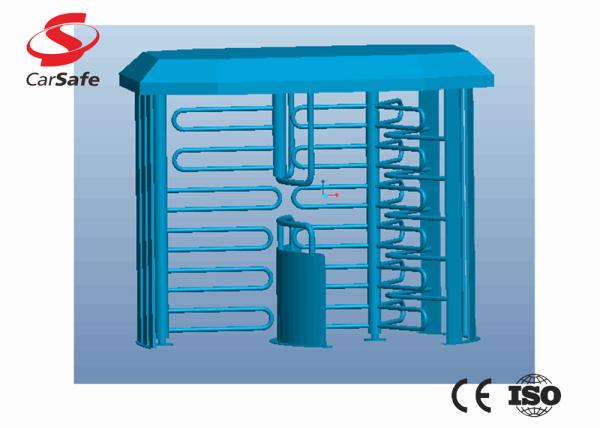

Automatic Turnstile Gate full height turnstile Gate

Meanwhile, in the emergency, the wing will open automatically. Waterproof level:IP54

The whole framework of full height turnstile series is made of 304/202 stainless steel, The turnstile not only provide people with civilized and orderly transit manner but also prevent the illegal in and out effectively.

Functions And Characteristics
Automatic type
Automatically reset function
The centre rotor will be set free (default) or locked (optional) automatically when power is off.
Emergency-escape function
Counting Function of the controller,
LED figure display function (optional)

Being compatible with several control devices
Unlocking is quick and reliable
The direction of rotation: single direction, bi-direction (optional)
Memory Function attached in the controller
With standard input, output interface

Technical parameters:

Structure	304/202 stainless steel
Working temperature	-10℃-50℃
Working environment	indoor, outdoor (with a tent)
Humidity	≤90%
Transit speed	30-40persons/min
Communication interface	RS485 interface or TCP/IP
The length of pole	650mm (standard)
size	29015002360mm
Power supply	AC230+/-10V 50/60Hz
Weight	650kg/pcs
Life-span	8 million times
